SKU: CSPD001-010

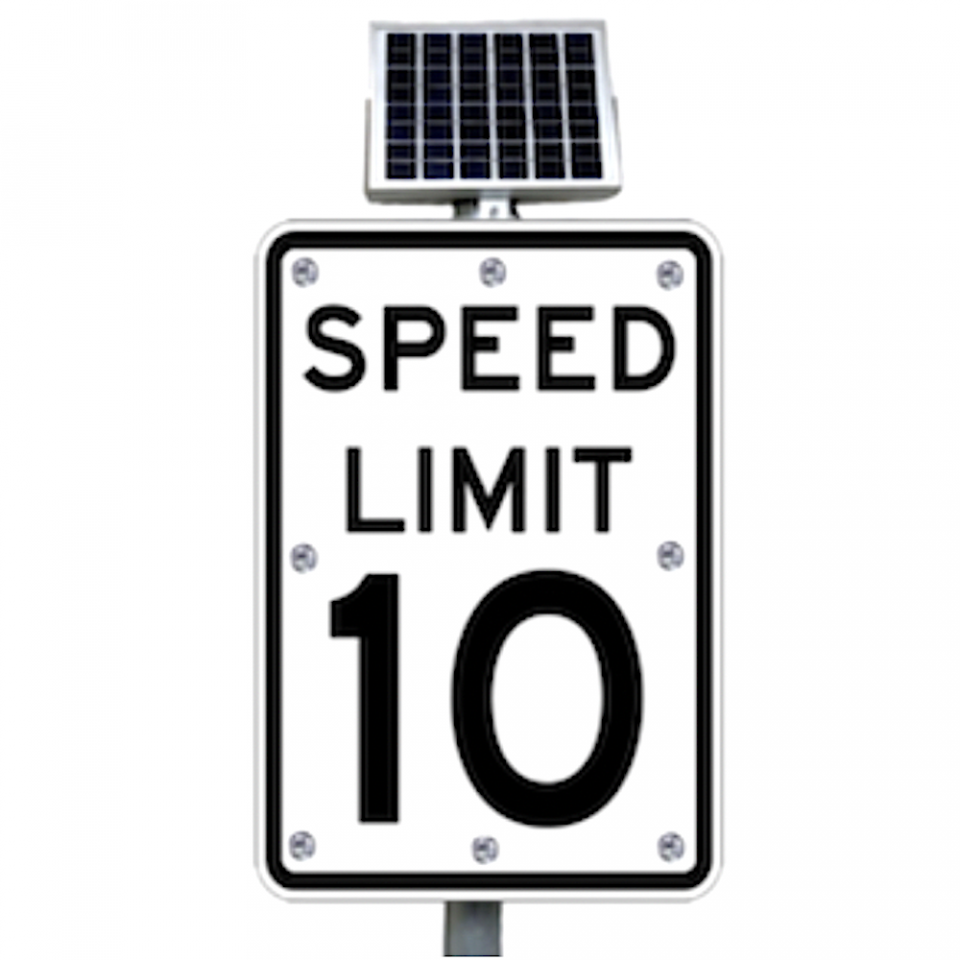

10mph Flashing Speed Limit Sign

Our Solar LED Flashing Speed Limit Sign (MPH) is a bright and energy efficient traffic sign that is built for durability and will increase driver awareness wherever it is placed! Made to MUTCD specifications and includes a 5W solar panel, junction box (with built-in rechargeable battery), MPH sign and mounting brackets. An ideal addition to school zones, shopping centers and other high-risk areas!

Product Specifications:

·     TYPE: 10mph Solar Traffic Safety Sign

·     CODE: CSPD001-010

·     MUTCD CODE: R2-1

·     SOLAR PANEL: 12V, 5W monocrystalline silicone

·     BATTERY: 7.4V Lithium battery 4400 AH

·     BATTERY SPAN: 3-5 years

·     WORKING TIME: After one full charge, 5-7 consecutive days

·     WORKING MODE: 24/7 or Dusk to Dawn

-       OPTIONAL: Timer activation (+$100)

·     VISIBILE DISTANCE: >2500 feet

·     DIMENSIONS:

-       PRODUCT: 18" (W) x 24" (H) inches (rectangle)

-       SHIPPING: 26” (W) x 26” (H) x 6” (D) inches

·     WEIGHT: 10lbs (without junction box)

·     SIGN COLOR: White

·     LED LIGHT COLOR: White

·     REFLECTIVE SHEETING:

-      STANDARD: Engineer grade reflective sheeting

-       OPTION: Diamond grade

·     MUTCD COMPLIANT

·     OTHER SPEEDS AVAILABLE

·     WARRANTY: 3 Year Full Warranty

JUNCTION BOX (BATTERY HOUSING)

·     STANDARD:5W /12V Solar Panel, 7.4V / 4400mAH Battery

·     UPGRADED: 8W / 12V Solar Panel, 7.4V / 6600mAH Battery (Longer Battery Life)

INCLUDES:

·      Solar panel

·      Junction box (holds motherboard and rechargeable battery)

·      Sign

·      Mounting hardware

The CSPD001-010 adheres to the MUTCD standards found within MUTCD guidelines Section 2A.07 for Retro-reflectivity and Illumination

·      Illumination of a sign by Light emitting diodes (LEDs)

·      Sign Element to be Illuminated: (1) Symbol or word message (2) Portions of the sign border

·      LED's are placed within 1 border unit of border

·      LED's are same color as sign background

·      LED's are within 1/4" in width

·      LED's flashing at a rate of 50 times per minute

·      Background of sign is standard 3M reflective engineering grade material

DOWNLOAD PRODUCT SHEET
